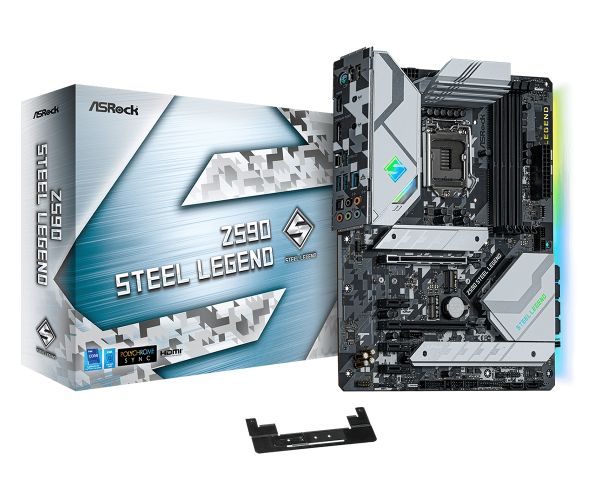

MB ASROCK Z590 STEEL LEGEND|LGA1200|DDR4

MB ASROCK Z590 STEEL LEGEND|LGA1200|DDR4

.

VPN: 90-MXBEQ0-A0UAYZ | COI: CP0882| SKU: 5133551

S/1,159.00
Últimas unidades en stock
Cantidad

  Política de seguridad

Compunet Store protege la información que es proporcionada al momento de utilizar nuestros servicios

  Política de envío

Nuestros envíos se realizaran por Safe Courier entre 24 y 48 horas, solo en el sector de lima.

  Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)

Se deberá contar con el comprobante original de compra y tener el producto en perfecto estado

  Política de Garantía

1. La garantía es válida sólo para productos de los Clientes directos de COMPUNET, no es aplicable

Model
Brand ASRock
Model Z590 STEEL LEGEND
Supported CPU
CPU Socket Type  LGA 1200
CPU Type Supports 10th Gen Intel Core Processors
Supports 11th Gen Intel Core Processors
Supported CPU Technologies Turbo Boost Technology 3.0
Chipsets
Chipset  Intel Z590
Memory
Number of Memory Slots 4×288pin
Memory Standard 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*

* 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 4.0 x16 11th Gen Intel Core Processors: 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
10th Gen Intel Core Processors: 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*

* Supports NVMe SSD as boot disks
PCI Express x1 3 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel Core Processors)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
SATA RAID 0/1/5/10, Intel Rapid Storage Technology 18
Onboard Audio
Audio Chipset  Realtek ALC897
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Dragon RTL8125BG
Max LAN Speed 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Rear Panel Ports
Back I/O Ports 2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
* Ultra USB Power is supported on USB3_12 ports.
* ACPI wake-up function is not supported on USB3_12 ports.
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Internal I/O Connectors
Other Connectors 1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers
* Support in total up to 12V/3A, 36W LED Strip
2 x Addressable LED Headers
* Support in total up to 5V/3A, 15W LED Strip
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Windows Compatibility
Windows 11 Supported
Features
Features ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
2.5G LAN
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Ultra USB Power
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Packaging
Package Contents Quick Installation Guide, Support CD
2 x SATA Data Cables
4 x Screws for M.2 Sockets
2 x Standoffs for M.2 Sockets
1 x Graphics Card Holder
