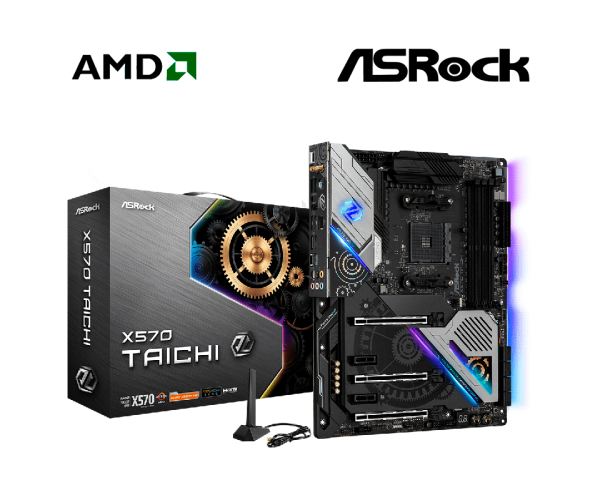

MB ASROCK X570 TAICHI WIFI |AM4| DDR4

MB ASROCK X570 TAICHI|AM4| DDR4

PN: 90-MXBA80-A0UAYZ  |  SKU: 4635870| COI:CP0627

S/1,499.00
Últimas unidades en stock
Cantidad

  Política de seguridad

Compunet Store protege la información que es proporcionada al momento de utilizar nuestros servicios

  Política de envío

Nuestros envíos se realizaran por Safe Courier entre 24 y 48 horas, solo en el sector de lima.

  Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)

Se deberá contar con el comprobante original de compra y tener el producto en perfecto estado

  Política de Garantía

1. La garantía es válida sólo para productos de los Clientes directos de COMPUNET, no es aplicable

Model
Brand ASRock
Model X570 TAICHI
Supported CPU
CPU Socket Type  AM4
CPU Type Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list.
Chipsets
Chipset  AMD Premium X570
Memory
Number of Memory Slots 4×288pin
Memory Standard AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory*

* For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs.
Maximum Memory Supported 128GB
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported  Dual Channel
Expansion Slots
PCI Express 4.0 x16 AMD Ryzen series CPUs (Matisse)
- 3 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3/PCIE5: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x8 (PCIE3) / x4 (PCIE5))*
AMD Ryzen series CPUs (Pinnacle Ridge)
- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3 x16 (PCIE1); dual at Gen3 x8 (PCIE1) / Gen3 x8 (PCIE3); triple at Gen3 x8 (PCIE1) / Gen3 x8 (PCIE3) / Gen4 x4 (PCIE5))*
AMD Ryzen series CPUs (Picasso)
- 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))*
- 1 x PCI Express 4.0 x16 Slot (single at x4 (PCIE5))*

* Supports NVMe SSD as boot disks
PCI Express x1 2 x PCI Express 4.0 x1 Slots
Other Slots 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11 ax module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE1)
Storage Devices
SATA 6Gb/s  8 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen4 x4 (64Gb/s) (with Matisse) or Gen3 x4 (32Gb/s) (with Pinnacle Ridge and Picasso)*
1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4 x4 (64Gb/s)*
1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen4 x4 (64Gb/s)*

* If M2_3 is occupied, PCIE5 slot will be disabled
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset  Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.0
Supports HDCP 2.2 with HDMI 2.0 Port
Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port
Supports Microsoft PlayReady

* Actual support may vary by CPU
** The Max shared memory 16GB requires 32GB system memory installed
Onboard Audio
Audio Chipset  Realtek ALC1220
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Intel i211AT
Max LAN Speed 10/100/1000Mbps
Wireless LAN Intel 802.11 ax Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 2.4 Gbps
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports MU-MIMO
Bluetooth Supports Bluetooth 5.0 + High speed class II
Rear Panel Ports
Back I/O Ports 2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
1 x BIOS Flashback Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

* Ultra USB Power is supported on USB3_5_6 ports.
* ACPI wake-up function is not supported on USB3_5_6ports.
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
Other Connectors 1 x TPM Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x AMD Fan LED Header*
1 x RGB LED Header**
1 x Addressable LED Header***
1 x CPU Fan Connector (4-pin)****
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x AMD LED Fan USB Header
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt AIC Card only)
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x Clear CMOS Button

* The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
** Supports in total up to 12V/3A, 36W LED Strip.
*** Supports in total up to 5V/3A, 15W LED Strip.
**** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
***** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
1 x 4-pin 12V Power Connector (Hi-Density Power Connector)
